Steel Cord Conveyor Belt

Offers exceptional tensile strength and impact resistance, ideal for long-distance and heavy-load material conveying.

Overview

Steel cord conveyor belts are essential for high-strength, long-distance material transportation, widely used in industries such as mining, metallurgy, ports, power generation, and building materials.

With steel cords as the core, these belts offer exceptional tensile strength and impact resistance, ensuring reliable performance under harsh conditions and heavy-duty operations.

View Specifications

Haituo (HiTop) Motion Technology Conveycustom Steel Cord Conveyor Belt (1)

More Details For Our Customers

Structure Composition

1. Steel Cord Core
·High-Strength Load-Bearing Element
Twisted from multiple high-strength steel wires, providing the required longitudinal tensile strength.
·Even Distribution
Evenly arranged within the belt to ensure uniform stress distribution and smooth operation.
·Various Strength Grades
Available in strength grades from ST-500 to ST-5400 and beyond, depending on transportation needs.

2. Core Rubber
·Bonding and Repair
Encapsulates and secures steel cords, enhancing bonding with the cover layers.
·Protection
Protects steel cords from damage and corrosion.
·Shock Absorption
Provides cushioning and damping to improve operational stability.

3. Cover Rubber
Top Cover
·Wear and Impact Resistance: Direct contact with materials, resisting abrasion and impacts.
·Various Material Options: Abrasion-resistant, heat-resistant, cold-resistant, acid-alkali-resistant options.
·Adjustable Thickness: Thickness selected based on the abrasion severity.
Bottom Cover
·Protects the Core: Prevents belt core wear caused by pulleys and rollers.
·Provides Friction: Ensures sufficient friction for belt movement.
·Typically Thinner: Bottom cover is usually thinner for performance balance.

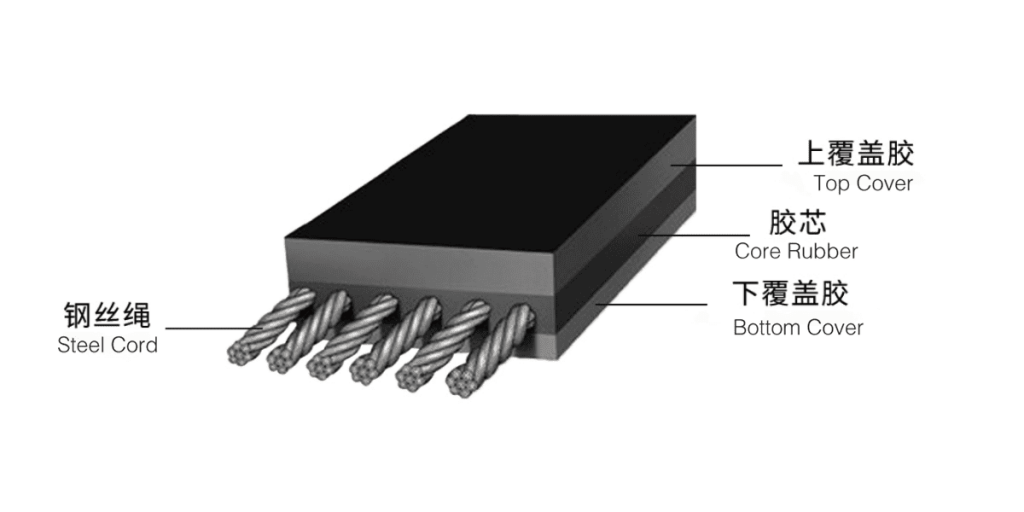

HiTop Motion Steel Cord Conveyor Belt illustration diagram（1）

Maintenance and Care

·Daily Inspection
Inspect surface for damage, joint integrity, belt alignment, and component condition.
·Regular Cleaning
Remove residues and dust regularly.
·Lubrication Maintenance
Lubricate rollers and pulleys periodically.
·Tension Adjustment
Check and adjust belt tension regularly.
·Preventive Maintenance
Replace worn or aged components timely under a preventive plan.

Note：

For more information on conveyor belt specifications, selection, or customization services, please contact our sales team.

Product Features

Ultra-High Tensile Strength

High-carbon steel cords with specialized processing deliver tensile strength up to 8000N/mm², 3-5 times stronger than fabric belts. The optimized cord arrangement ensures even stress distribution under heavy loads for exceptional durability.

Long-Distance Capability

Single-flight vulcanized lengths up to 20km minimize transfer points and maintenance needs. Ideal for demanding long-haul applications in mines and ports spanning kilometers.

Impact Resistance

Steel cords absorb kinetic energy from falling materials to protect belt integrity. Maintains stable operation even when conveying lumpy ores or sharp-edged aggregates.

Minimal Elongation

Operational elongation <0.25% (1/10 of fabric belts) guarantees consistent tension. Reduces energy consumption by 15% by minimizing re-tensioning needs.

Need a custom solution?
Let’s make it simple.

Professional OEM/ODM services to match. From function to design, we offer fast and flexible customization to meet your exact needs.

Customization Options

01.

Size Flexibility

Roller length, pulley diameter, shaft size, and other dimensions can be precisely tailored to fit specific conveyor systems.

02.

Material Selection

Various materials including carbon steel, stainless steel, aluminum, and polymers are available for different environments.

03.

Surface Finish

Powder coating, zinc plating, hot-dip galvanizing, and rubber lagging enhance corrosion resistance and surface grip.

04.

Sealing Design

Optional sealing systems such as labyrinth seals, steel cap seals, and fully enclosed designs improve dust and water protection.

05.

Rubber Ring Type

Impact idlers support various rubber ring types and hardness levels, effectively handling different shock loads and operational conditions.

06.

Engineering Support

We support custom development based on drawings or samples, and assist in structure optimization and non-standard design.

Applications Across Industries

Mining

Tear-resistant steel cord belts withstand continuous impact from sharp-edged ores.

Cement Plants

Heat-resistant covers (+150℃) prevent surface carbonization during clinker conveying.

Chemical Industry

Transports fertilizers/plastic pellets using corrosion-proof rubber & enclosed structures.

Construction

Wide belts for sand/concrete with high-capacity design.

Power Plants

Anti-static guide strips eliminate spark risks in coal conveying.

Steel Mills

Handles iron ore/slag at 800°C with alloy-reinforced carcass.

Logging

Reinforced belts transport logs/sawdust with puncture-proof layers.

Logistics

Anti-salt spray rubber compound extends service life in humid port operations.
